Safer solvent extraction and waste collection for HPLC, LC-MS, FPLC, ICP, and other laboratory instruments. Our closed-system solutions provide containment for both pure reagents and waste effluent while mitigating evaporation and solvent fumes.
Many lab instruments require volatile organic solvents which can be health and safety concerns. Our products provide a closed-system solution.
Reduce exposure to harmful solvent fumes and vapors in your laboratory environment.
Securely capture waste without leaks or drips, without foil or lab film.
Prevent evaporation of expensive chemical reagents with PTFE check valves.
Our closed systems consist of three integrated components: solvent extraction, emissions control, and waste collection.
Inert PTFE one-way check valve reduces solvent evaporation while allowing clean air to enter.
Activated carbon adsorption media captures toxic fumes with chemical-change breakthrough indicator.
Multi-port manifolds securely capture waste without leaks, drips, foil or lab film.
Ultra high surface area activated carbon for HPLC emission reduction.
Reduce toxic fumes and noxious odors from HPLC solvent waste by vapor capture onto activated carbon exhaust filters. Each filter includes a button-activated lapse timer to aid in estimating the time in service (medium filters: 3-month timer, large filters: 6-month timer).
For real-time end-of-service-life detection, we offer filters with a chemical-change breakthrough indicator to reveal a color change after exposure to common HPLC organic solvents.
| Part Number | Description | U/M |
|---|---|---|
| DS-CFM | Exhaust Filter, Medium | Each |
| DS-CFMV | Exhaust Filter Pack, Medium | 5/PK |
| DS-CFMI | Exhaust Filter w/ Indicator, Medium | Each |
| DS-CFMIV | Exhaust Filter Pack w/ Indicator, Medium | 5/PK |
| DS-CFL | Exhaust Filter, Large | Each |
| DS-CFLI | Exhaust Filter w/ Indicator, Large | Each |
| DS-IN01 | Breakthrough Indicator, Chemical Change | Each |

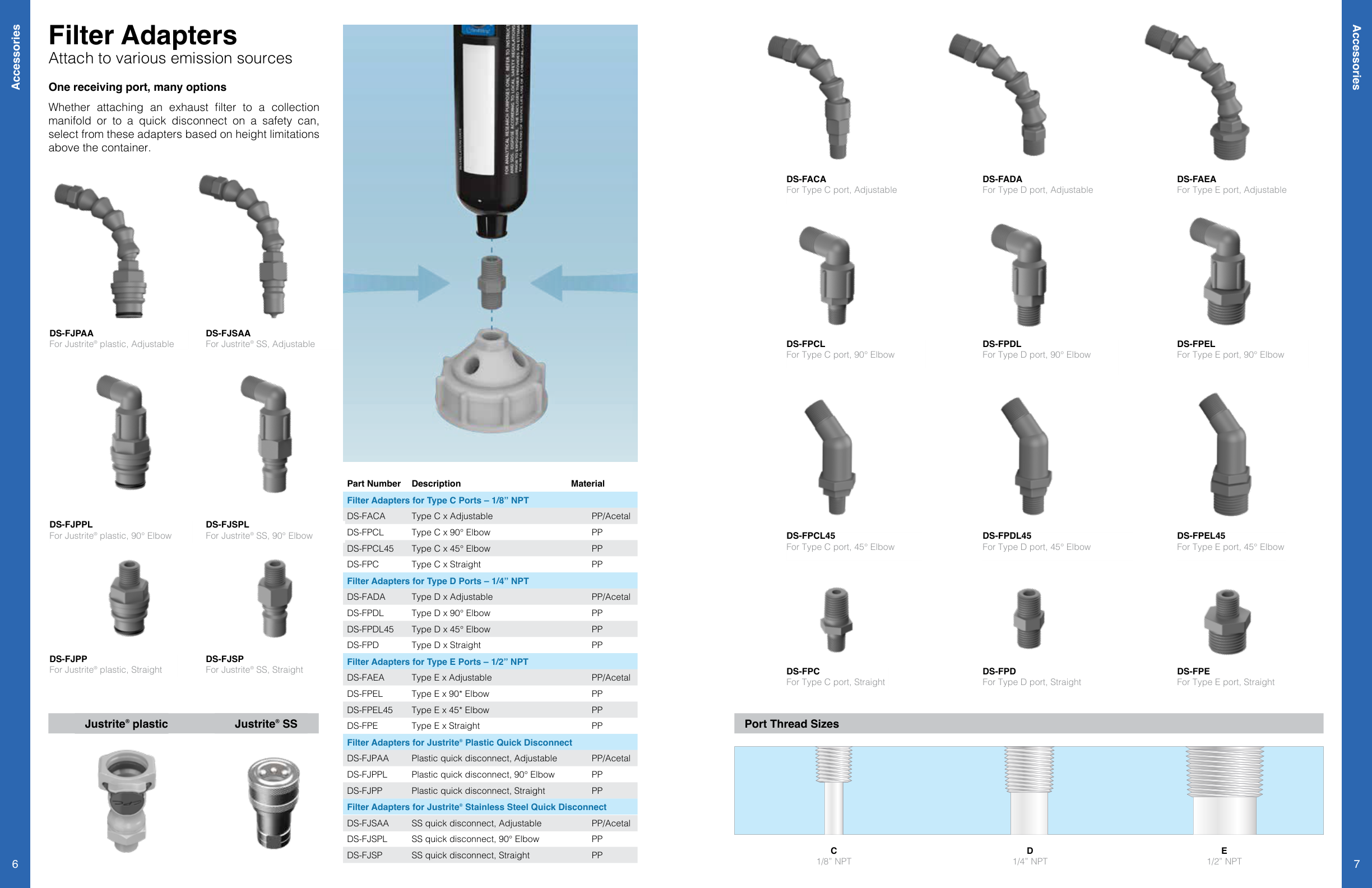

Attach exhaust filters to various emission sources.
Whether attaching an exhaust filter to a collection manifold or to a quick disconnect on a safety can, select from these adapters based on height limitations above the container. Available in straight, 90° elbow, 45° elbow, and adjustable configurations.
| DS-FPC | Straight |
| DS-FPCL | 90° Elbow |
| DS-FPCL45 | 45° Elbow |
| DS-FACA | Adjustable |
| DS-FPD | Straight |
| DS-FPDL | 90° Elbow |
| DS-FPDL45 | 45° Elbow |
| DS-FADA | Adjustable |
| DS-FPE | Straight |
| DS-FPEL | 90° Elbow |
| DS-FPEL45 | 45° Elbow |
| DS-FAEA | Adjustable |
| Plastic Quick Disconnect | |
|---|---|
| DS-FJPP | Straight |
| DS-FJPPL | 90° Elbow |
| DS-FJPAA | Adjustable |
| Stainless Steel Quick Disconnect | |
|---|---|
| DS-FJSP | Straight |
| DS-FJSPL | 90° Elbow |
| DS-FJSAA | Adjustable |
Multi-port manifolds available for 16+ container thread sizes. Choose from 4-port, 7-port, 10-port, or 6-port XL configurations in Polypropylene or PTFE.
| Size | Ports | Configuration |
|---|---|---|
| 7-Port Size M | 3A, 4C | PP or PTFE |
| 4-Port Size L | 4D | Polypropylene |
| 10-Port Size L | 6A, 4D | Polypropylene |
| 6-Port Size XL | 5D, 1E | Polypropylene |
Port Types: A = 1/4-28 UNF, B = 5/16-24 UNF, C = 1/8" NPT, D = 1/4" NPT, E = 1/2" NPT
Plus: Justrite® Centura™ safety cans with plastic or stainless steel quick disconnects
Complete kits for HPLC waste collection include everything you need to get started.
Complete kit for HPLC waste collection
DS-Kxx-A
Everything in Basic Kit, plus:
DS-Kxx-B
(Nearly) limitless modular expansion for extra tubes.
One of the unique features of our solvent collection manifolds is their ability to adapt to additional tubing requirements. Whether attaching five tubes or fifty, each manifold can be expanded by connecting modular "stacking" units.
This is especially useful in laboratories at maximum solvent capacity permissible by law. By connecting more than one instrument to a single waste carboy, additional containers may not be required.
| Part Number | Description | Ports |
|---|---|---|
| DS-SPC7M | 7-Port Size M, Type C (PP) | 3A, 4C |
| DS-SPD7M | 7-Port Size M, Type D (PP) | 3A, 4C |
| DS-SPD4L | 4-Port Size L, Type D (PP) | 4D |
| DS-SPD10L | 10-Port Size L, Type D (PP) | 6A, 4D |
| DS-SPD6XL | 6-Port Size XL, Type D (PP) | 5D, 1E |
Compression fittings, barbed fittings, plugs, adapters, and tubing extensions for complete system customization.

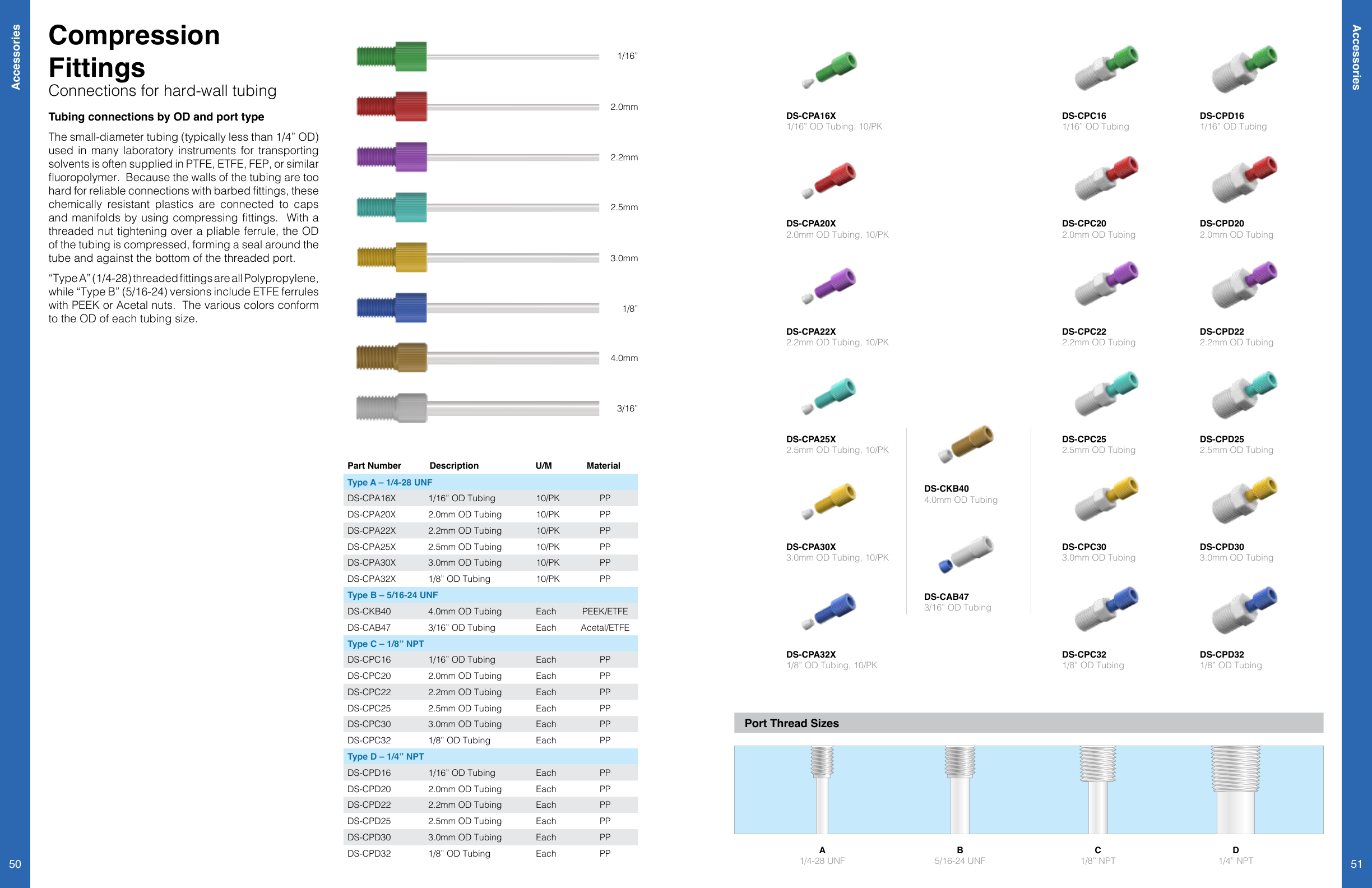

Connections for hard-wall tubing. For PTFE, ETFE, FEP, or similar fluoropolymer tubing. With a threaded nut tightening over a pliable ferrule, the OD of the tubing is compressed, forming a seal.
| Part Number | Description | U/M |
|---|---|---|
| DS-CPA16X | 1/16" OD Tubing, Type A | 10/PK |
| DS-CPA22X | 2.2mm OD Tubing, Type A | 10/PK |
| DS-CPA25X | 2.5mm OD Tubing, Type A | 10/PK |
| DS-CPA32X | 1/8" OD Tubing, Type A | 10/PK |
| DS-CPC32 | 1/8" OD Tubing, Type C | Each |
| DS-CPD32 | 1/8" OD Tubing, Type D | Each |

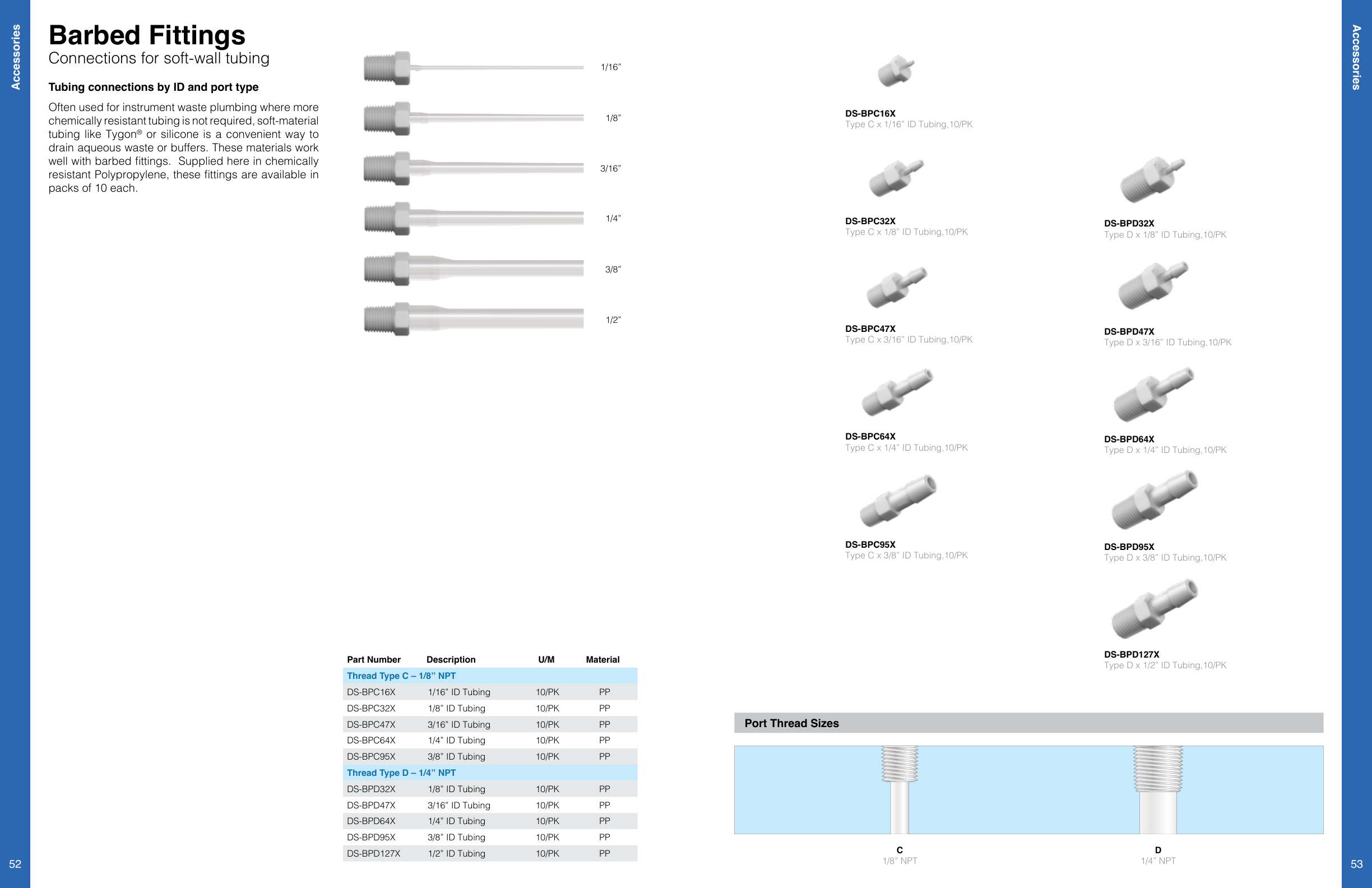

Connections for soft-wall tubing. For Tygon® or silicone tubing used for draining aqueous waste or buffers. Supplied in chemically resistant Polypropylene, available in packs of 10.
| Part Number | Description | U/M |
|---|---|---|
| DS-BPC16X | Type C x 1/16" ID Tubing | 10/PK |
| DS-BPC32X | Type C x 1/8" ID Tubing | 10/PK |
| DS-BPC64X | Type C x 1/4" ID Tubing | 10/PK |
| DS-BPD32X | Type D x 1/8" ID Tubing | 10/PK |
| DS-BPD64X | Type D x 1/4" ID Tubing | 10/PK |
| DS-BPD127X | Type D x 1/2" ID Tubing | 10/PK |

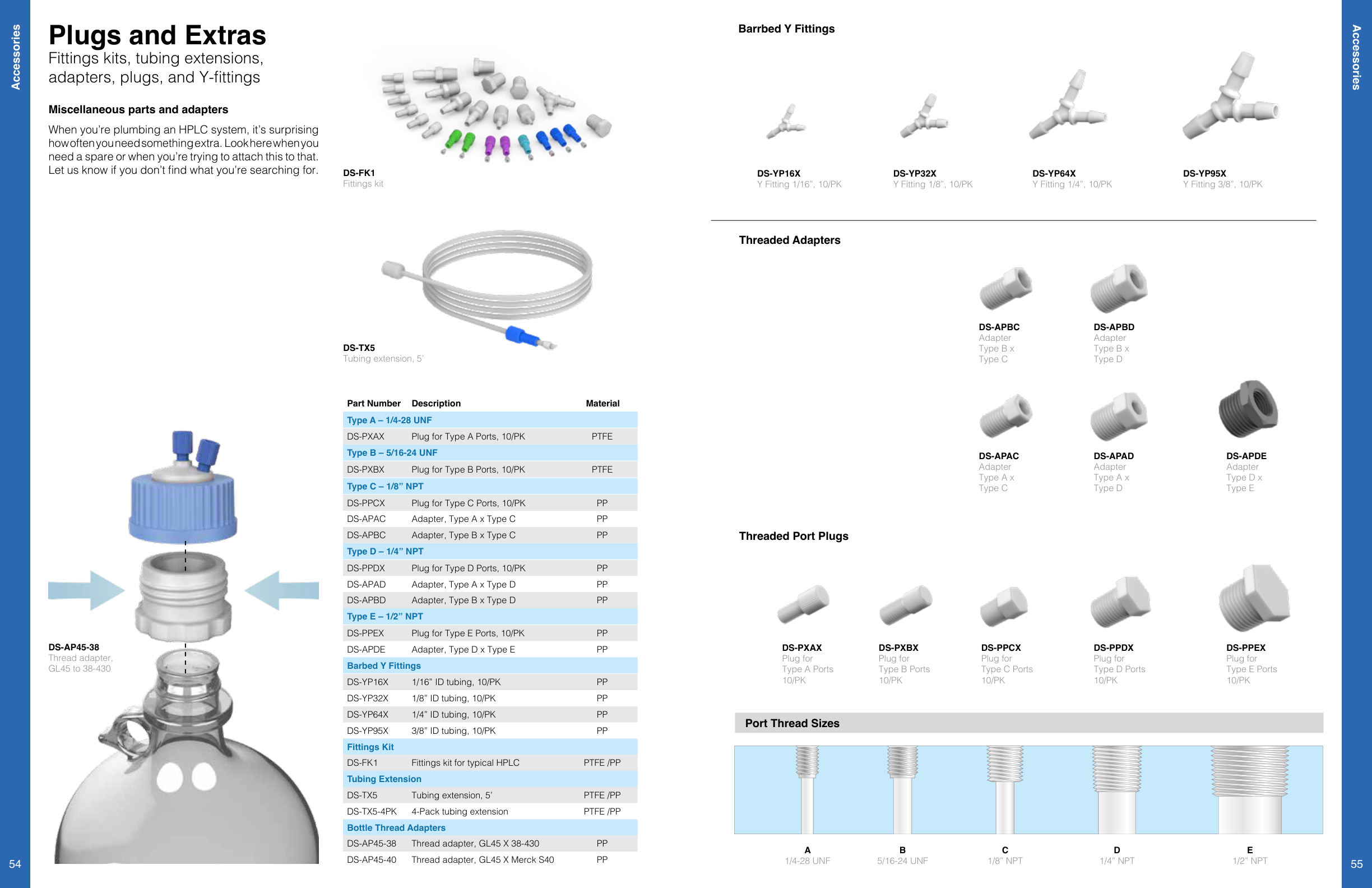

Miscellaneous parts and adapters. When plumbing an HPLC system, it's surprising how often you need something extra. Look here when you need a spare or when you're trying to attach this to that.
| Part Number | Description | Material |
|---|---|---|
| DS-PXAX | Plug for Type A Ports, 10/PK | PTFE |
| DS-PPDX | Plug for Type D Ports, 10/PK | PP |
| DS-YP32X | Y Fitting 1/8", 10/PK | PP |
| DS-YP64X | Y Fitting 1/4", 10/PK | PP |
| DS-TX5 | Tubing extension, 5' | PTFE/PP |
| DS-FK1 | Fittings kit for typical HPLC | PTFE/PP |
| DS-AP45-38 | Thread adapter, GL45 x 38-430 | PP |
Contact us for assistance with thread identification, system configuration, or custom requirements. Download our complete catalog for detailed specifications and part numbers.
